Electronic Brinell hardness tester

型号：

Contact Now

Product details
Requesting samples and information

Overview:

Integrated casting body without deformation, displacement, closed-loop electronic loading structure, stable performance, high measurement accuracy, and good repeatability. The electronic control system is easy to install and has a testing force of 10 levels. The force value and holding time are displayed clearly, and the interface operation is simple.

Main functions:

Adopting closed-loop sensor loading and electronic control system, easy and simple installation;

Having a testing force of level 10;

High precision, high repeatability and stability, easy operation and other characteristics;

The force value and holding time are displayed clearly, and the interface operation is simple.

Application scope:

Brinell hardness uses a large testing force and indentation diameter, making it suitable for hardness testing of large grain metal materials, such as cast iron, non-ferrous metals and alloys, various annealed and quenched and tempered steels, mainly for softer metals such as pure aluminum, lead, tin, etc.

Technical data:

model	HBE-3000
Vickers Scales	HBW2.5/62.5HBW2.5/187.5HBW5/62.5HBW5/125HBW5/250HBW5/750 HBW10/100HBW10/250HBW10/500HBW10/1000HBW10/1500HBW10/3000
Experimental force	62.5kkgf (612.9N)100kgf (980.7N)125kgf (1226N)187.5kgf (1839N) 250kgf (2452N)500kgf (4903N)750kgf (7355N)1000kgf (9807N) 1500kgf (14710N)3000kgf (29420N)
Minimum measurement unit	0.005mm
Total magnification	20X
Hardness testing scope	（8-650）HBW
Duration Time	5~60S
External dimensions(mm)	550X250X780mm
Host weight	about140kg
Maximum height of the specimen	240mm
Inner wall to center of pressure head	145mm
source	AC110-220V±5%,50~60Hz

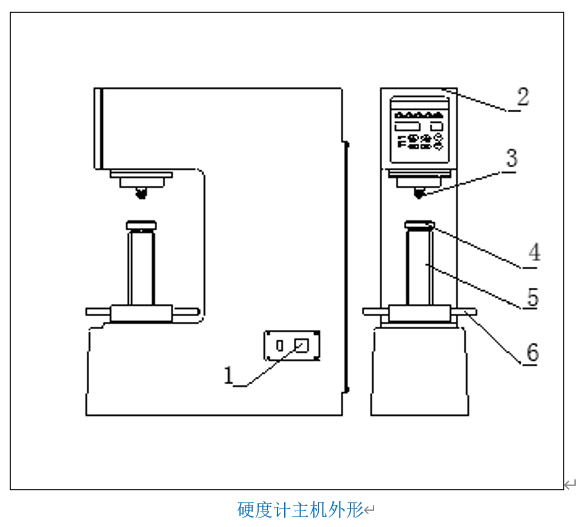

Appearance of hardness tester host:

1.switch	2.Upper cover	3.Pressure head	4.Test bench	5.Lifting screw
6.Spinning wheel

The hardness tester meets the standard:
GBT 231.1-2018 Brinell hardness test for metallic materials Part 1: Test methods

GB/T 231.2-2012 Brinell hardness test for metallic materials Part 2: Verification and calibration of hardness testers

Verification regulation of JJG150 metal Brinell hardness tester

Standard configuration:

name	quantity	name	quantity
main engine	1platform	20Reading microscope	1only
φ2.5mmBall pressure head	1only	φ5mmBall pressure head	1only
φ10mmBall pressure head	1only	Zhongping Interview Platform	1only
Large flat test bench	1only	VType test bench	1only
Brinell hardness standard block	3block	Product Qualification Certificate	1share
