Overview:
Integrated cast aluminum body, without deformation or displacement, stable performance, high measurement accuracy, and good repeatability. The experimental results can be printed out. Adopting a weight loading structure and automatic compensation of test force. Equipped with hardness value conversion function, it can determine the upper and lower tolerances of hardness. The brightness of the light source makes observation clearer and easier. 5.1 inch large screen LCD display, menu style structure, easy to operate. Manually switch between the indenter and objective lens, input the indentation diameter length D1 and D2 values into the encoder to reduce manual reading errors.
Main functions:
5.1 inch large screen LCD display, menu style structure, all operation processes and test results data can be displayed on the LCD large screen;
The experimental process is automated and easy to operate;
Equipped with hardness value conversion function, capable of judging the upper and lower tolerances of hardness;
Adopting closed-loop sensor loading and electronic control system loading, automatically compensating for experimental force;
High definition optical system and photoelectric sensing system for clearer and easier observation;
Encoder input of indentation diameter length D1 and D2 values to reduce human reading errors;
The data of the experimental results can be output through a printer;
Application scope:
Mainly used for hardness testing of materials such as cast iron, steel, non-ferrous metals, and soft alloys. In addition, it can also be used for hardness testing of certain non-metallic materials such as hard plastics and electric wood. Suitable for factories, workshops, laboratories, colleges and research institutions.
Technical data:
|
model
|
HBS-62.5
|
|
Vickers Scales
|
The steel ball is1mm HBW1/1, HBW1/5,HBW1/10,HBW1/30
|
|
The steel ball is2.5mm HBW2.5/15.625, HBW2.5/62.5
|
|
The steel ball is5mm HBW5/62.5 This scale is available on this machine, but it is generally not used
|
|
Exchange Scales
|
HRCHVHKHBWHRAHRDHR15NHR30NHR45NHR15THR30THR45T
HRBHRF
|
|
Experimental force
|
1kgf5kgfs10kkf15.625kgf30kgf62.5kgfs
|
|
Minimum graduation value of micrometer eyepiece
|
0.25μMand0.125μM
|
|
Total magnification
|
Observation or measurement50X
measure100X（Special objective lenses, please customize separately）
|
|
Hardness testing scope
|
（8-650）HBW
|
|
data output
|
Built in printer
|
|
Exchange Scales
|
Rockwell, surface Rockwell, Brinell
|
|
loading control
|
Automatic (loading, holding, unloading)
|
|
External dimensions(mm)
|
550X250X780mm
|
|
Host weight
|
about45kg
|
|
Maximum height of the specimen
|
165mm
|
|
Inner wall to center of pressure head
|
130mm
|
|
source
|
AC220V±5%,50~60Hz
|
|
Execution standards
|
Accuracy meetsGB231.2ISO6506-2andASTM E10
|
|
Optional accessories
|
XYWorkbenchCCDmeasurement system
|

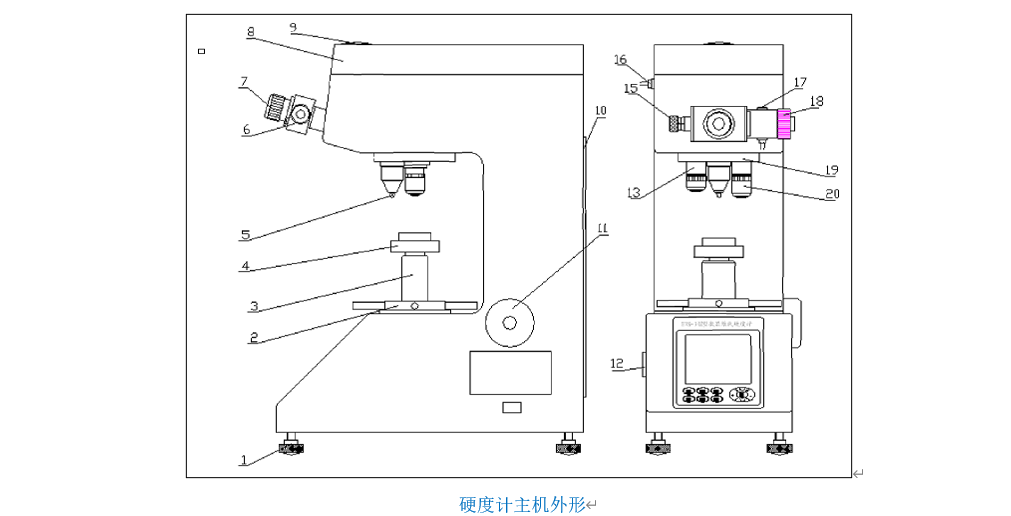

Appearance of hardness tester host:
|
1.Adjusting screws
|
2.Spinning wheel
|
3.screw
|
4.Test bench
|
5.Pressure head
|
|
6.eyepiece
|
7.Eye mask
|
8.Upper cover
|
9.Camera cover
|
10.Rear cover plate
|
|
11.handwheel
|
12.Power switch
|
13.10х objective lens
|
|
15.Left drum wheel
|
|
16.Circular socket
|
17.Measurement button
|
18.Right drum wheel
|
19.Turret
|
20.5х objective lens
|

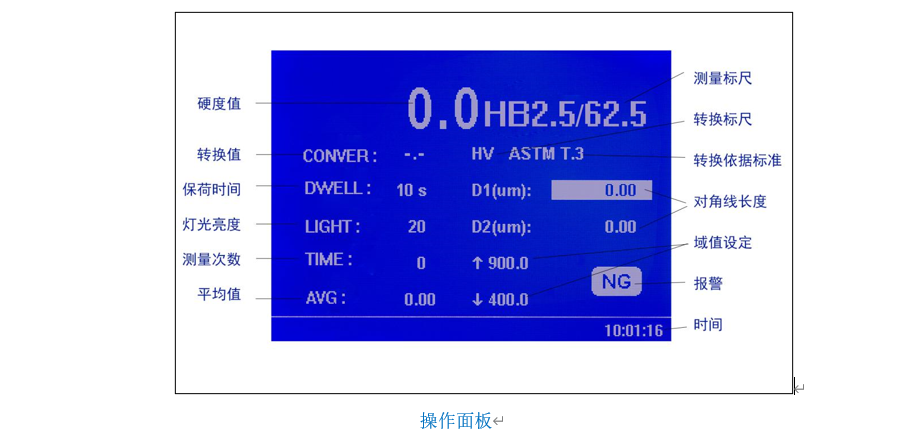

Introduction to panel key functions:
The hardness tester meets the standard:
GBT 231.1-2018 Brinell hardness test for metallic materials Part 1: Test methods
GB/T 231.2-2012 Brinell hardness test for metallic materials Part 2: Verification and calibration of hardness testers
Verification regulation of JJG150 metal Brinell hardness tester
Standard configuration:
|
name
|
quantity
|
name
|
quantity
|
|
main engine
|
1platform
|
objective lens5x10x
|
various1only
|
|
φ2.5mmBall pressure head
|
1only
|
φ5mmBall pressure head
|
1only
|
|
φ1mmBall pressure head
|
1only
|
Weights
|
5only
|
|
Digital micrometer eyepiece10x
|
1only
|
|
|
|
about200HBW2.5/62.5Brinell hardness standard block
|
1block
|
about100HBW1/30 Brinell hardness standard block
|
1block
|
|
Zhongping Interview Platform
|
1only
|
Power cord
|
1root
|
|
Large flat test bench
|
1only
|
VType test bench
|
1only
|
|
Brinell hardness standard block
|
3block
|
Product Qualification Certificate
|
1share
|
|
Product User Manual
|
1book
|
|
|
