Overview:The MHBE-3000 touch screen electronic Brinell hardness tester is suitable for measuring the Brinell hardness of black and non-ferrous metals. This machine adopts a closed-loop sensor loading and electronic control system, with a testing force of 10 levels. This machine has the characteristics of high precision, high repeatability, stability, and easy operation. The loading time has doubled compared to the past (within 8 seconds), greatly shortening the operation process. Input d1d2 on the screen to obtain the hardness value.
Main functions:
The menu structure allows for the display of data on various operation processes and test results on the large LCD screen;
The experimental process is automated and easy to operate;
Equipped with hardness value conversion function, capable of judging the upper and lower tolerances of hardness;
Adopting closed-loop sensor loading and electronic control system loading, automatically compensating for experimental force;
High definition optical system and photoelectric sensing system for clearer and easier observation;
Input the values of indentation diameter length D1 and D2 to reduce human reading errors;
The pressure head and objective lens automatically switch.
Application scope:
The Brinell hardness test uses a large testing force and a large indentation diameter, making it suitable for hardness testing of large grain metal materials, such as cast iron, non-ferrous metals and alloys, various annealed and quenched and tempered steels, especially for softer metals such as pure aluminum, lead, tin, etc.
Technical data:
|
model
|
MHBE-3000
|
|
Vickers Scales
|
HBW2.5/62.5HBW2.5/187.5HBW5/62.5HBW5/125HBW5/250HBW5/750HBW10/100HBW10/250HBW10/500HBW10/1000HBW10/1500HBW10/3000
|
|
Experimental force
(Force accuracy ≤ ±1%）
|
62.5kkgf (612.9N)100kgf (980.7N)125kgf (1226N)187.5kgf (1839N)
250kgf (2452N)500kgf (4903N)750kgf (7355N)1000kgf (9807N)
1500kgf (14710N)3000kgf (29420N)
|
|
Duration Time
|
0-60S
|
|
Measure the magnification of the microscope
|
20X
|
|
Minimum measurement unit
|
0.005mm
|
|
The maximum allowable height of the tested object
|
240mm
|
|
Distance from the center of the pressure head to the body
|
145mm
|
|
supply voltage
|
Wide power supplyAC110V-220V±5%,50~60Hz
|
|
External dimensions of hardness tester
|
550X210X750（Mm）
|
|
Instrument weight is approximately
|
140kg（Packing weight approximately: 160kg)
|
|
Data export
|
OptionalUSBexport
|
|
Hardness testing scope
|
8~650HBW
|
|
Indicating accuracy
|
Standard hardness block
|
Maximum error of indication%（relativeH)
|
Repetitive error of indication
|
|
≤125
|
±3
|
0.03d
|
|
125<HBW≤225
|
±2.5
|
0.025d
|
|
>225
|
±2
|
0.02d
|
|
Execution standards
|
GB/T231.2national standards(GB/T231.2 Chinese Standard) JJG150Verification regulations(JJG150 Inspection Rule)
|

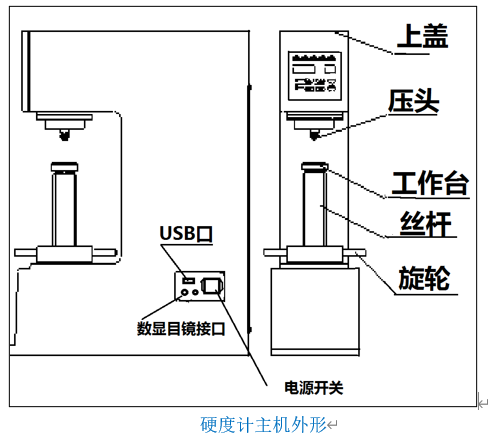

Appearance of hardness tester host:

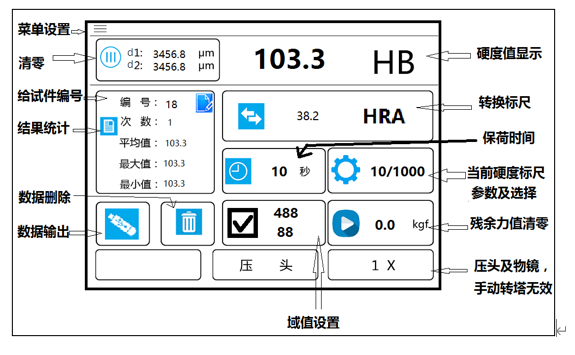

Introduction to panel key functions:
The hardness tester meets the standard:
GBT 231.1-2018 Brinell hardness test for metallic materials Part 1: Test methods
GB/T 231.2-2012 Brinell hardness test for metallic materials Part 2: Verification and calibration of hardness testers
Verification regulation of JJG150 metal Brinell hardness tester
Standard configuration:
|
name
|
quantity
|
name
|
quantity
|
|
main engine
|
1platform
|
20Reading microscope
|
1only
|
|
φ2.5mmBall pressure head
|
1only
|
φ5mmBall pressure head
|
1only
|
|
φ10mmBall pressure head
|
1only
|
Small flat test bench
|
1only
|
|
Large flat test bench
|
1only
|
VType test bench
|
1only
|
|
Brinell hardness standard block
|
|
HBW/3000/10 (150~250)
|
1block
|
HBW/1000/10 (75~125)
|
1block
|
|
HBW/187.5/2.5 (150~250)
|
1block
|
Product User Manual
|
1book
|
|
Product Qualification Certificate
|
1share
|
Power cord
|
1root
|
