2. Main functions:

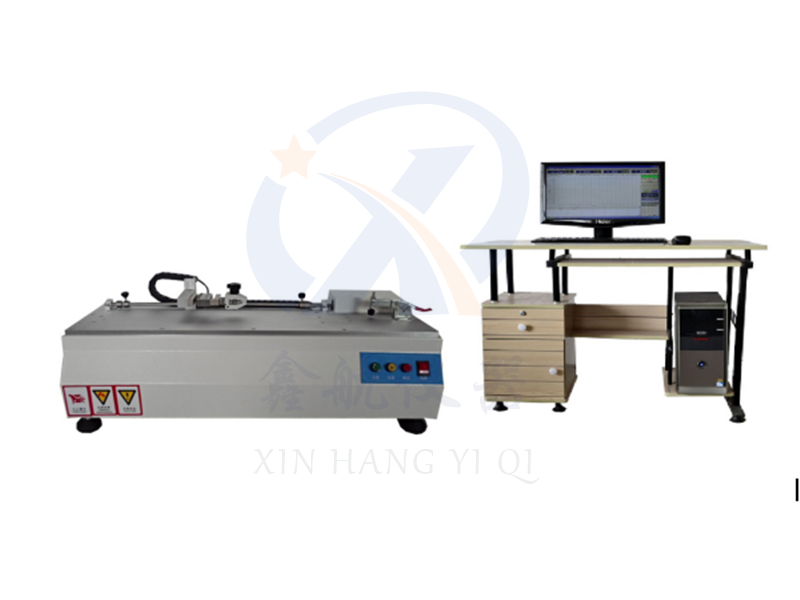

This machine is developed and designed for carrier stripping tests, controlled by microcomputer chips. It can perform tensile and stripping force tests on materials, with full computer operation and automatic reset function. The testing software can output test graphics and table data as the basis for material testing.

3. Software features

The measurement and control system is designed specifically for microcomputer electronic universal testing machines. Can conduct tensile, compression, bending, shear, tear, and peel tests. Using a PC and interface board for data collection, storage, processing, and printing of test results. Can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus, etc; Capable of curve processing, multi-sensor support, graphical and graphical interfaces, flexible data processing, and database support, making the system more powerful.

3. Specification parameters:

Capacity selection

50N, 100N, 200N, 500N (optional)

Display:

Computer display mode

Power resolution:

1/250000

Power accuracy:

0.5%

Travel resolution:

1/250000

Control method:

Full computer operation mode

Experimental itinerary:

500mm

Experimental width:

φ 140mm

Experimental speed:

0-500mm/min computer settings

Power unit conversion:

Kgf, N, Ibf, g, ton, Mpa

Shutdown mode:

Overload stop, emergency stop button, automatic stop for specimen damage, automatic stop for upper and lower limit setting, and automatic reset function

Machine size:

800 x 300 x 300mm (W x D x H)

Machine power:

Japanese Tamagawa servo motor drive, synchronous wheel and precision ball screw drive

Power:

180W

Machine weight:

Approximately 100kg

Using electricity:

220V 50/60HZ 5A

Standard configuration:

1 set of fixtures, computer software, and data cables;
