2Main functions:

bookThe machine is suitable for various textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic films, composite materials, electronics, metal and other industries to conduct various tests such as stretching, compression, bending, shearing, peeling (90 degrees and 180 degrees), tearing, etc. to determine the quality of products.

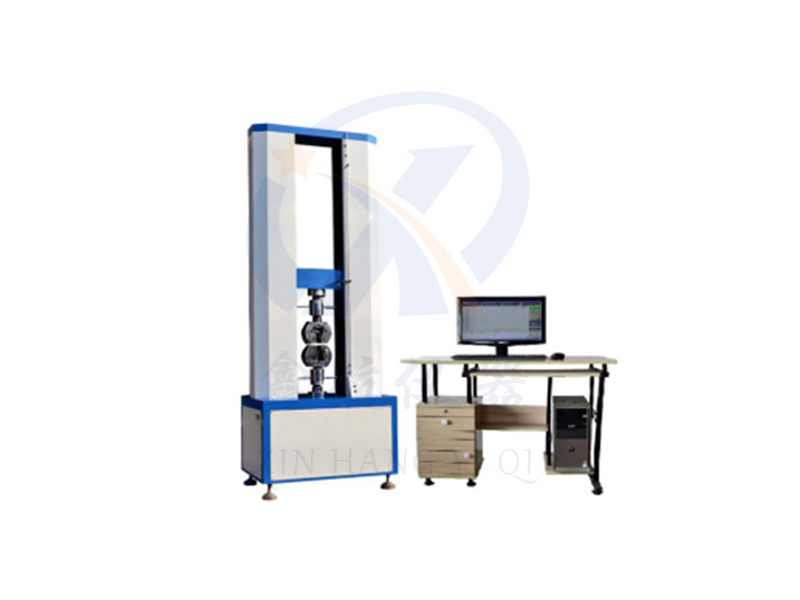

bookThe machine is a simple tensile testing machine with a simple structure and convenient operation, which can be placed on a workbench for testing. It adoptstouch screenControl system, controlfrequency conversionThe motor rotates and then decelerates through a variable speed mechanical mechanism to drive the T-shaped screw to lift and lower the load sensor, in order to complete the tensile or compressive test of the specimen. The force value is output by the sensor, fed back to the display, and the test displacement is displayed in real-time.Can achieve tests such as fixed force value and positioning displacement.

Can store 10 test reference point results, automatically calculate their average value, automatically grasp the maximum value, and the force value at fracture.

The machine includes a thermal printer that can automatically outputtestResult.

3Technical parameters:

Capacity selection

5,10,20,50100200500KgOptional

Force measurement accuracy

± of the indicated value1%Within

Display method

touchScreen control

Unit switching

Kg, lb, N

Data sampling frequency

200times/sec

Resolution of testing machine

Maximum load 1/± 25000 yards, without dividing the inside and outside, and with constant resolution throughout the entire process

Load sensor

Basic configuration: tension and pressure sensors (maximum load)

Effective test width

150mm

Effective stretching space

800mm

Test speed range

50-300mm/min stepless speed regulation and 5-speed regulation (special test speeds can also be customized according to customer needs)

Displacement measurement accuracy

± of the indicated value1%Within

Breakpoint ratio setting

0-99%, users can set appropriate fracture downtime according to different materials

Test bench safety device

Up and down stroke limiting device

Overload protection

Exceeding maximum load by 10%, machine automatically protects

Fixture configuration

A set of stretching fixtures

Host size

500400 × 1300mm

Host weight

about100 Kg
