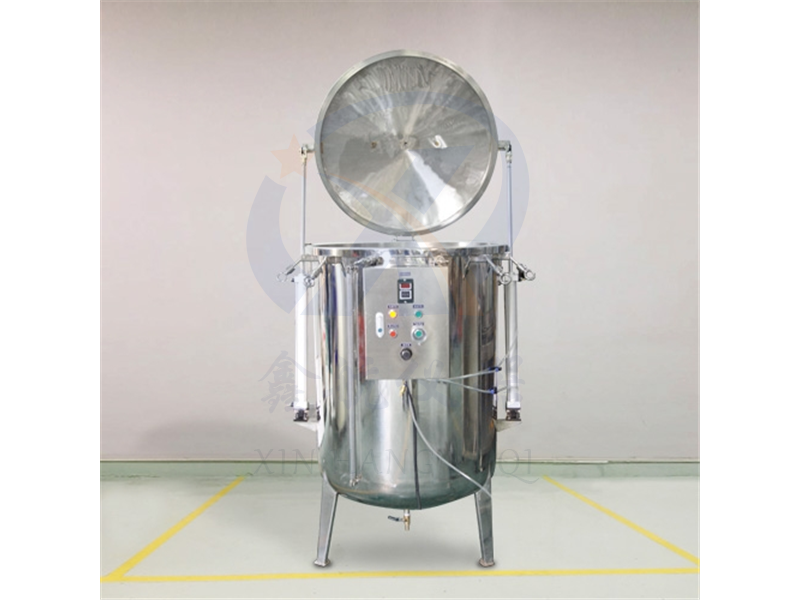

IPX7-8 pressure immersion test chamber
  • IPX7-8 pressure immersion test chamber
  • IPX7-8 pressure immersion test chamber
  • IPX7-8 pressure immersion test chamber
  • IPX7-8 pressure immersion test chamber
IPX7-8 pressure immersion test chamber

型号：

The purpose of the rain test box equipment is suitable for testing electrical and electronic products, automotive and motorcycle parts, and seals to prevent sand and dust from entering the seals and shells in a sand and dust environment. To test the performance of electronic and electrical products, automotive and motorcycle components, and seals in their use, storage, and transportation in the environment.

Contact Now
  • Product details
  • Requesting samples and information

model

LY-FS8-30A-250L

Equipment functions

Applicable for IPX8 waterproof level testing of products

parameter

External dimensions of equipment

Approximately 685 * 765 * 1700mm

Internal dimensions of the equipment

Diameter 500 * 1200mm

Tank wall thickness

3mm

Tank material

Stainless steel

Thickness of flange

20mm

Flange material

Stainless steel

Equipment weight

Approximately 120KG

Opening method of tank cap

Cylinder lifting and lowering

Pressure control method

Automatic adjustment

Pressure sensor display accuracy

0.001Mpa

Eye sensor error range

± 0.002Mpa

Test water depth range

0-30 meters

Pressure adjustment range

0.00-0.3Mpa

Safety valve exhaust pressure

0.35Mpa

Maximum ultimate pressure

0.4Mpa

Test time setting range

0-999 min

Protective devices

Pressure safety valve protection, leakage switch protection

Air intake adjustment method

Manually adjusting the pressure regulating valve

voltage

220V, 50Hz

power

100W
