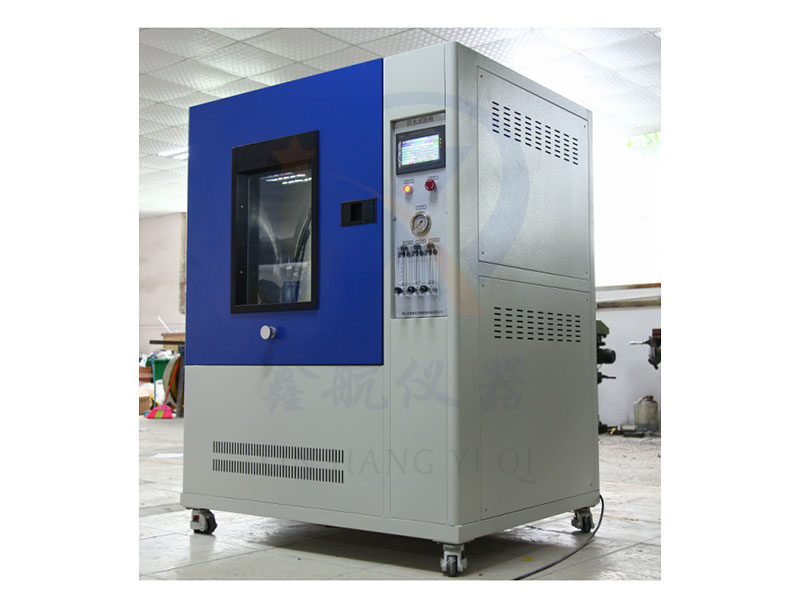

Equipment functions

Suitable for conducting four waterproof level tests on products: IPX1, IPX2, IPX3, and IPX4

parameter

Inner box size

Length 900 * Depth 900 * Height 1050mm

External dimensions

Approximately 1350 in length * 1120 in depth * 1770mm in height

Turntable diameter

¥ 400mm

Maximum load-bearing capacity of the turntable

50KG

Turntable lifting height

450-750 mm

Turntable tilt

0 ° or 15 ° (horizontal direction)

Turntable speed

1-5r/min (precisely adjustable)

Rotating mode of turntable

Continuous forward rotation/alternating forward and reverse rotation/intermittent rotation

Test time

0-999 min

Total mass of equipment

230kg

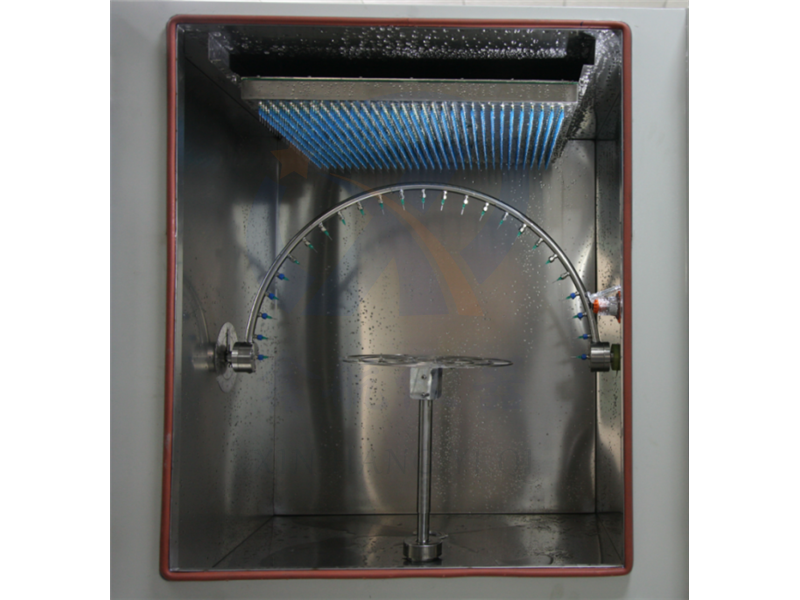

IPX12 section

technical parameter

Drip plate area

600 * 600mm

IPX12 spray hole size

0.4mm diameter

Distance between drip holes

20 * 20 mm

rainfall

IPX1=1mm/min; IPX2=3mm/min

Flow regulation method

Manual adjustment

Raindrop panel lifting method

Non lifting (fixed)

IPX34/4K section

technical parameter

Pendulum radius size

R400mm

Pendulum flow rate

IPX3=1.1L/min ± 5%

IPX4=1.8L/min ± 5%

Water spray aperture size

0.4mm (IPX3/IPX4); 0.8mm (IPX4K)

Water spray aperture spacing

50mm

Pendulum inner diameter

15mm

Pendulum angle

120 º (IPX3), 350 º (IPX4)

Swinging speed of pendulum tube

240 ° round-trip 4S, 720 ° round-trip 12S (precise control)

Electrical parameters

Equipment power supply

220V, 50Hz

Test sample power supply

220V, 50Hz

Equipment power

1.0KW

Security protection function

Leakage protection, water shortage protection, short circuit protection
