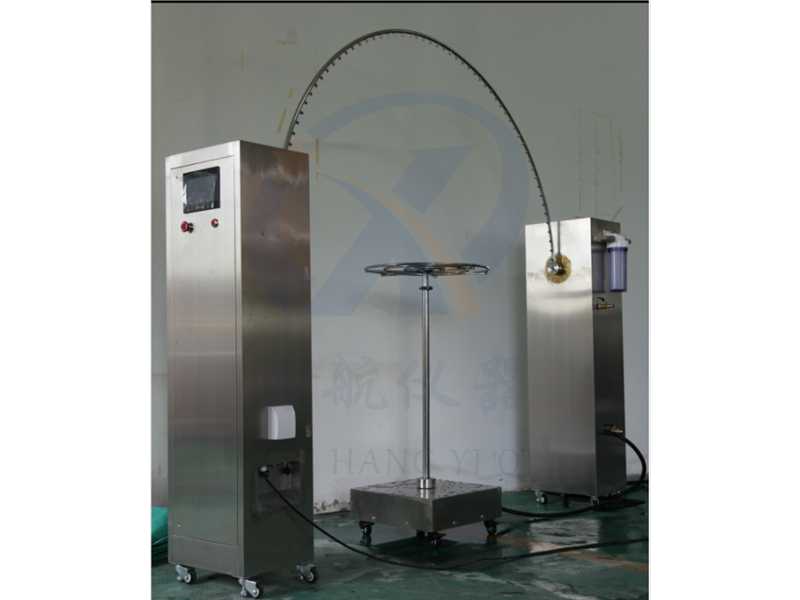

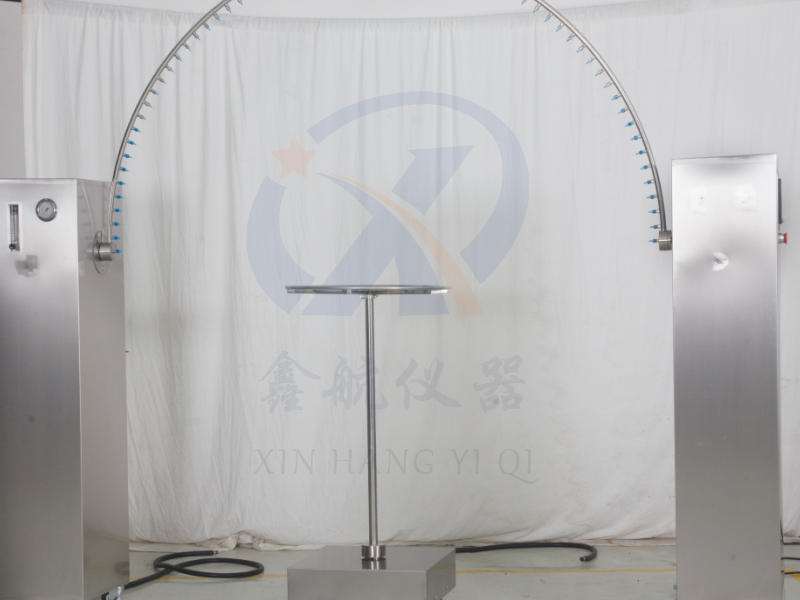

IPX3-4 open rain test

型号：

The purpose of the rain test box equipment is suitable for testing electrical and electronic products, automotive and motorcycle parts, and seals to prevent sand and dust from entering the seals and shells in a sand and dust environment. To test the performance of electronic and electrical products, automotive and motorcycle components, and seals in their use, storage, and transportation in the environment.

Contact Now

Product details
Requesting samples and information

model		LY-IPX3-4-- R1000
Equipment functions		Applicable for IPX3 and IPX4 waterproof level testing of products
parameter	External dimensions (in operation)		2850 long, 2020 deep, 2350mm high
	Pendulum size		R1000mm
	Sample turntable diameter		800mm diameter
	flow		IPX3=2.9L/min ± 5%; IPX4=4.3L/min ± 5%
	Height range of turntable		1300-1700mm
	Spray hole size		0.4mm diameter
	Pendulum inner diameter		15mm
	Turntable load-bearing capacity		50kg
	Rotating speed of turntable		1-5r/min (precise and adjustable)
	Rotating mode of turntable		Continuous forward/reverse alternating
	Pendulum angle		120 º (IPX3), 350 º (IPX4)
	Swinging speed of pendulum tube		240 ° round-trip 4S, 720 ° round-trip 12S (precise control)
	Equipment power supply		220V, 50Hz
	Test sample power supply		220V, 50Hz
	Equipment power		1.0KW
	Security protection function		Leakage protection, water shortage protection, short circuit protection
