1、 Overview of this device:

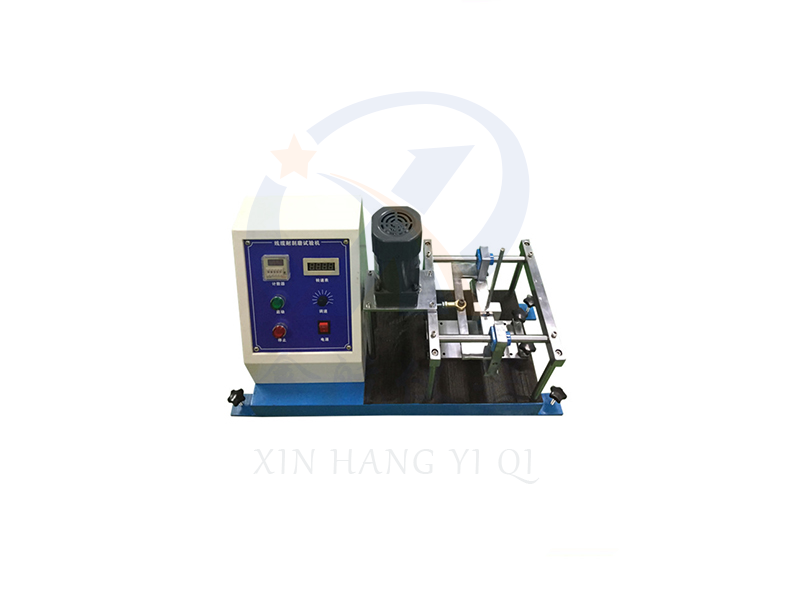

The wire abrasion resistance testing machine is suitable for abrasion resistance testing of various automotive wires and cables. This machine is used to fix wires on a work platform, and the scraper needle tests the product back and forth under a certain load. This machine is manufactured according to the requirements of GB/T12528-2008 standard, and also complies with standards such as QCT730-2005, JB/T8139, JASO D618, DIN72551, VW60306, etc.

2、 Main technical parameters:

1. Scratching stroke: 15.5mm

2. Scraping needle friction frequency: 10-60 times/minute (knob adjustable, digital display)

3. Test frequency: 0-9999 times (with automatic counting and power-off memory function)

4. Shutdown device: When the scraping needle wears through the insulation and contacts the conductor, the equipment automatically stops

5. Friction mode: back and forth linear motion

6. Sampling length: approximately 1000mm

7. Load weights: 400g, 700g, 1000 each

8. Scraping needle diameter: 0.45 mm Spring wire

9. Transmission motor: precision grinding motor

10. Transmission mechanism: imported guide rail

11. Machine size (L x W x H): approximately 500 x 300 x 450mm

12. Machine weight: 30kg

13. Working power supply: AC220V, 50HZ

3、 Product features:

1. The box body is treated with electrostatic paint, and the overall design is reasonable, with a tight structure, safe and stable operation, and meets the standards;

2. Adopting imported guide rails and durable motors, with a long service life;

3. The testing speed is adjustable, the number of times can be preset, and the power-off memory function meets the requirements of no testing, with a user-friendly design;

4. Equipped with a stop device, the product automatically stops when damaged.
