1、 Product Usage:

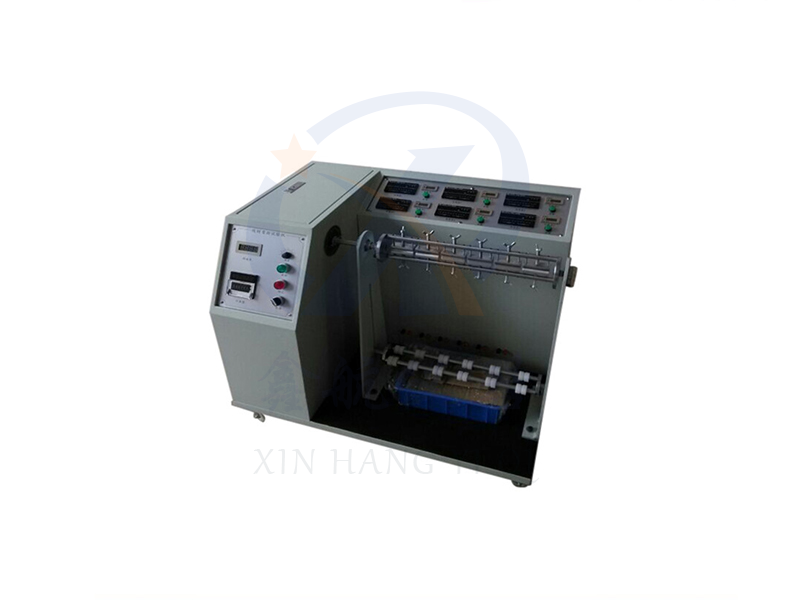

The headphone wire resistance bending test machine is specifically designed to test the bending strength and resistance change of the plug lead and wire. If the resistance exceeds the upper or lower limit, it can automatically stop. This machine is used to fix the sample onto a fixture and apply a certain load. During the test, the fixture swings left and right. After a certain number of times, the wire breakage rate is checked, or the total number of swings is checked when the resistance exceeds the set upper and lower limits. This function automatically counts, and when the sample is bent to a broken wire or the resistance exceeds the limit, it can automatically stop the operation. It can choose to stop a single group exceeding the limit or stop the entire machine exceeding the limit, making it convenient for collection and analysis. This machine complies with the provisions of UL817 and other relevant standards, such as the General Safety Requirements for Cord Components and Power Cords, and the General Technical Standard for Headphones GB/T14471, which tests the bending of wires.

2、 Main technical parameters:

1. Experimental workstation: Six groups (simultaneous testing)

2. Bending angle: 0- ± 90 ° (indicated by the dial and indicator needle, adjustable)

3. Bending angle display and adjustment: The indicator needle indicates the scale dial, and the eccentric shaft can be adjusted

4. Test speed: 10-60 times/minute (knob speed regulation, LCD digital display)

5. Count setting: 0-999999 times (can be preset, automatically stops after reaching the number of times, power off memory function)

6. Conduction counter: 0-999999 times (conductivity is automatically counted separately, with one group disconnected and the corresponding group automatically stopping counting)

7. Resistance measurement range 0-99.99 ohms (six groups measured separately, upper and lower limits can be set to stop counting/shutdown)

8. Shutdown method: Resistance over limit shutdown, can switch between single over limit shutdown and 6 sets of over limit shutdown

9. Hook weights: six each for 50, 100, 200, 300, and 500g

10. Handle test fixture: Six sets of anti slip and non easily damaged special fixtures for test materials

11. Test fixing rod: can be adjusted up and down to fix the lower end of the product, making the test more in line with standards

12. Machine size (L x W x H): 850 x 600 x 750mm

13. Machine weight: 70kg

14. Working power supply: AC220V, 50HZ

3、 Product features:

1. This chassis is treated with electrostatic paint and designed according to various standards. The overall design is reasonable, the structure is tight, and the operation is safe, stable, and accurate;

2. The test count counter can be preset, and the test conductivity counter automatically counts. When the number of times is reached, the machine automatically stops, and it has a power-off memory function, which is convenient and practical;

3. The experimental speed knob is adjustable, with LCD display. Customers can set it according to their own requirements, with a user-friendly design;

4. The bending angle is manually adjustable, and the indicator needle indicates the scale dial for better adjustment;

5. Six sets of workstations work simultaneously without affecting each other, counting separately. If one set is disconnected, the corresponding counter stops counting, and the machine continues to test to improve testing efficiency;

6. Six sets of anti slip and non easily damaged special handle tools for the test material, making it more convenient and fast to hold the product;

7. The test fixing rod can be adjusted up and down, and made according to standard requirements for better test results;

8. Equipped with hook load weights that can be stacked multiple times, making suspension more convenient.
